Our Machines

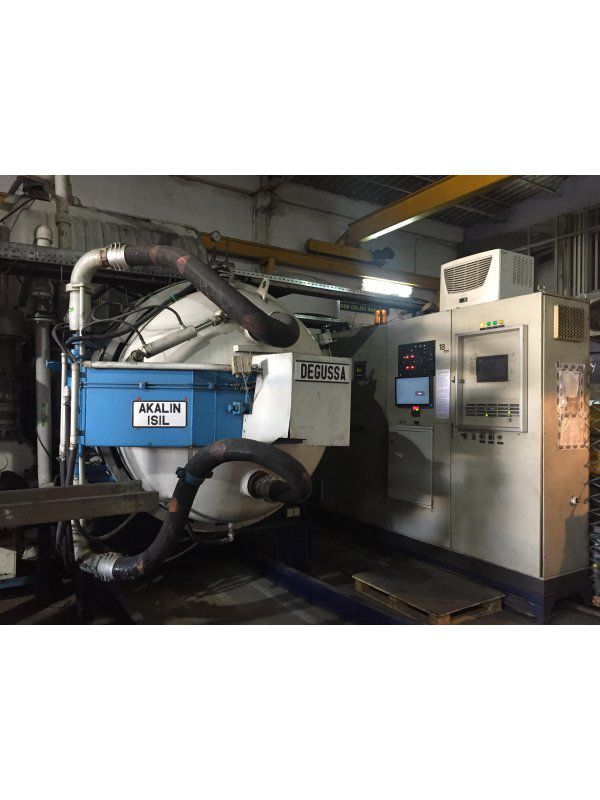

VACUUM HEAT TREATMENT OVEN



VACUUM HEAT TREATMENT OVEN

Producer : DEGUSSA
Model : VSgr 150/150
Serial number : 54301
Oven Sizes : 600x950x650 mm
Capacity : 800 Kg
Gas Pressure : 10 bar
Max. Temperature : 1350 °C
Oil Diffusion Pump : Guaranteed Hochvacuum
Type : 8250
Mechanical Pump : Edwards Vacuum
Type : D180M
Piston Pump : Edwards Vacuum
Type : EH900

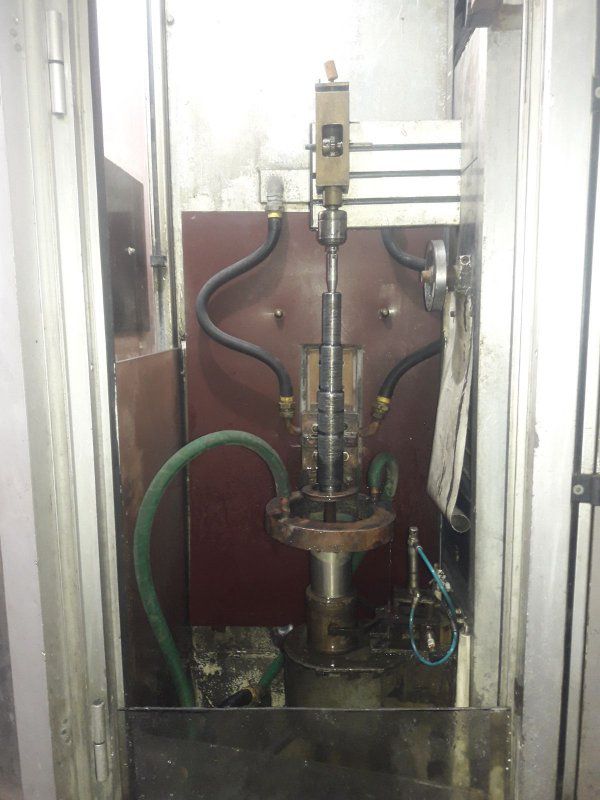

INDUCTION

Brand : EMA
Type : H1335-00-01
Model : 1999
Dimensions : Ø120 Boy:450 mm
Application : Induction Hardening
Hardening Temperature : 850-900 °C
Hardness Depth : 2,0-5,0 mm
Hardness : 50-60 HRc
Power : 80 kW
Frequency : 2/10 kHz
Piece : 1

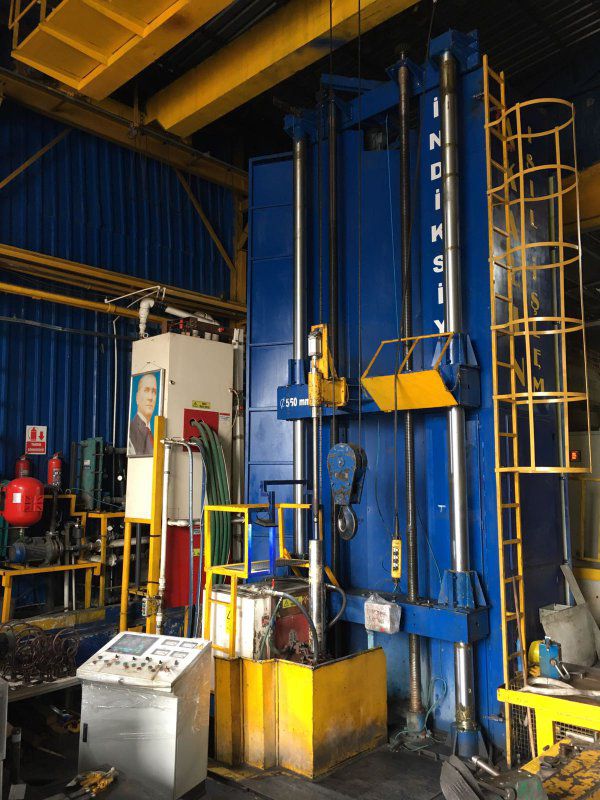

INDUCTION

Brand : İNDUCTOTHERM GROUP
Type : STATIPOWER SP18
Model : 2007
Dimensions : Ø550 Boy: 6000 mm
Application : Induction Hardening
Hardening Temperature : 850-900 °C
Hardness Depth : 2,0-14,0 mm
Hardness : 50-60 HRc
Power : 300 kW
Frequency : 3/10 kHz
Piece : 1

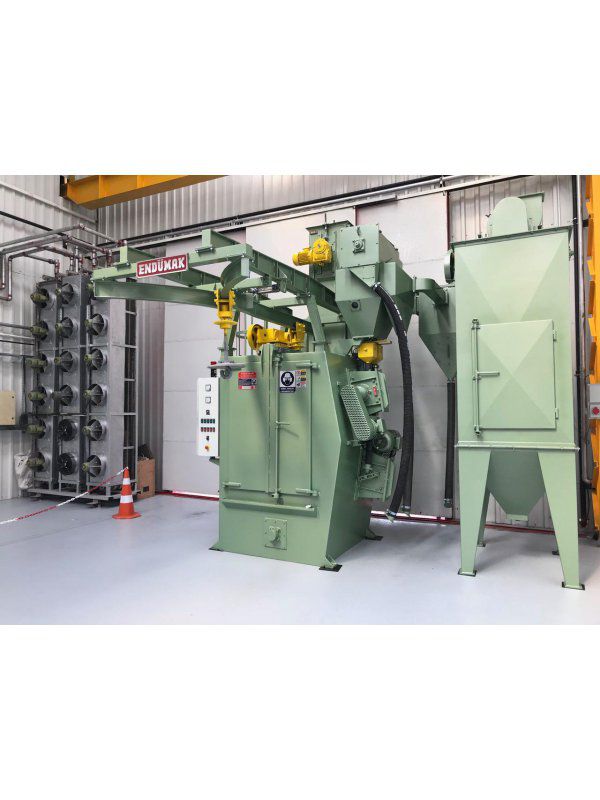

SANDBLASTING

Brand : Endümak
Model : AKO Hanging Sanding
Capacity : 600 Kg

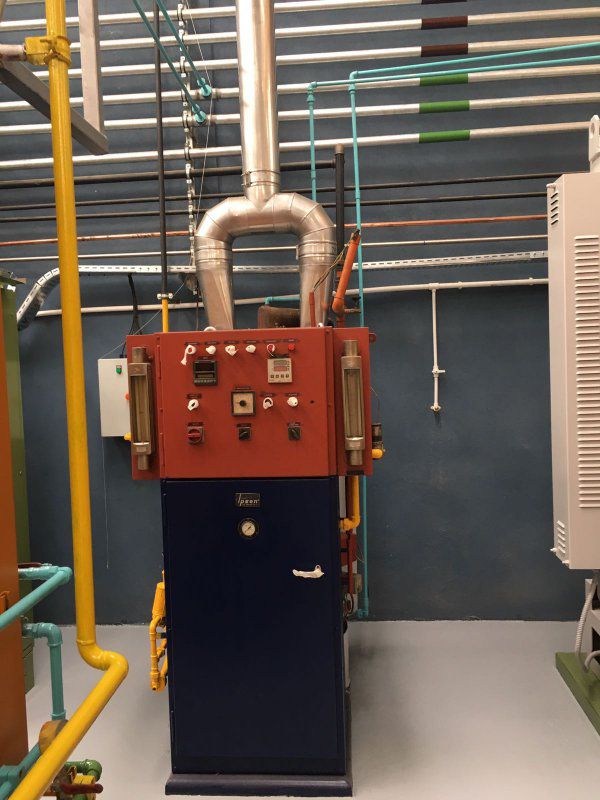

ENDOGAZ GENERATOR

Brand : IPSEN
Type : G350G (23,2 KW
Max. Temperature : 1050 °C
Charging Capacity : 20000 kcal/h
Piece : 2

PRE-WASH

Brand : Otto Müller Fell Bach
Type : Brülör Klöckner KL 25 1G
Max. Temperature : 100 °C
Charge Ewest : 740x700x1400 mm
Charging Capacity : 1000 Kg
Number of Waits : 1 (Indoor Flame)
Power : 60 KW
Piece : 1
Water Capacity : 2000 lt

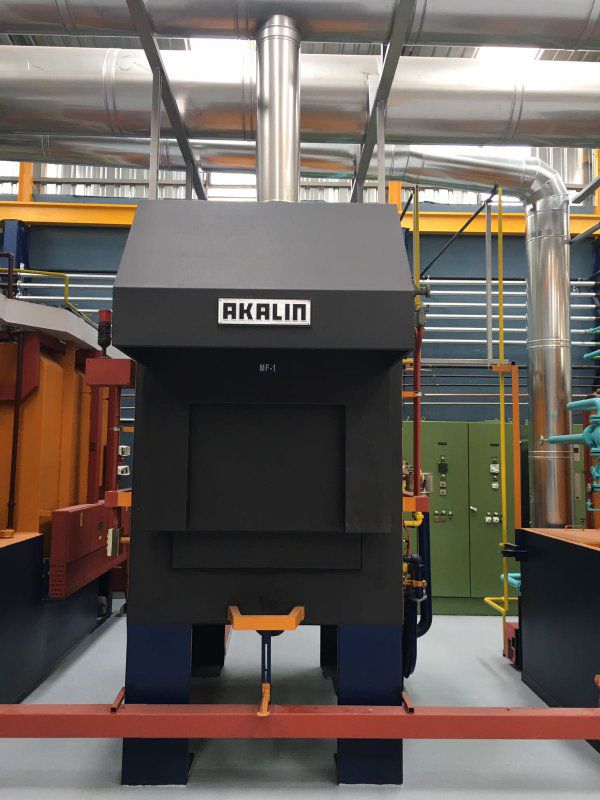

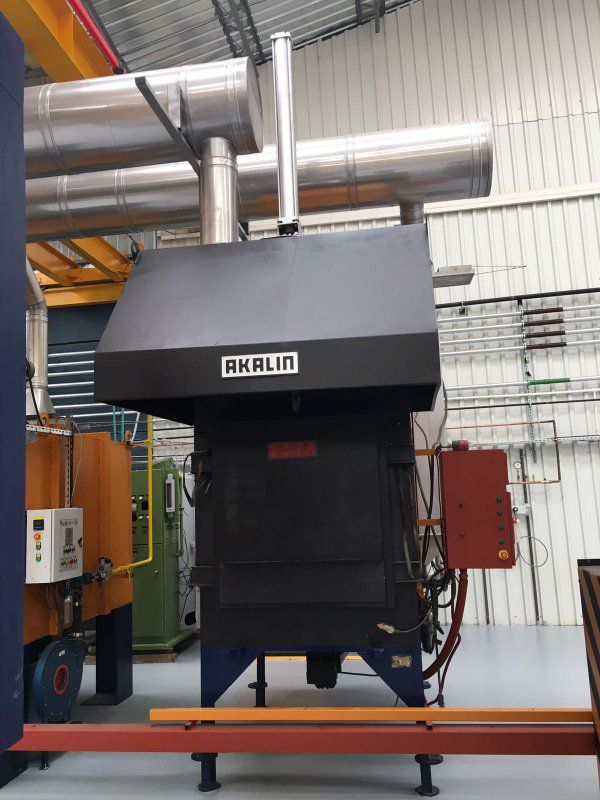

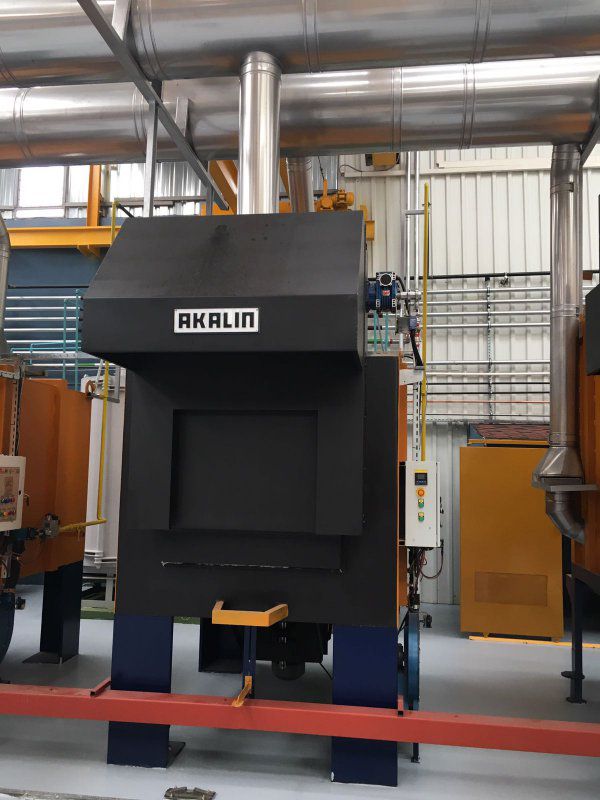

MENEVİŞ FURNACE

Brand : AKALIN(Designed from AICHELIN)
Type : VKHLG-4/1/70/65 KW
Max. Temperature : 750 °C
Charge Ewest : 740x700x1400 mm
Charging Capacity : 1000 Kg
Number of Waits : 1(Open Flame KROMSCHRODER AG)
Power : 80 KW
Piece : 1

MENEVİŞ FURNACE

Brand : AICHELIN
Type : VKHLG-4/1/70/65 KW
Max. Temperature : 650 °C
Charge Ewest : 740x700x1400 mm
Charging Capacity : 1000 Kg
Number of Waits : 1(Open Flame KROMSCHRODER AG)
Power : 80 KW
Piece : 1

MENEVİŞ FURNACE

Brand : IPSEN
Type : DM-1/M
Model : 1990
Max. Temperature : 650 °C
Charge Ewest : 740x700x1400 mm
Charging Capacity : 1000 Kg
Number of Waits : 1(Indoor Flame KROMSCHRODER AG)
Power : 80 KW
Piece : 1

ATMOSPHERE CONTROLLED MULTI-PURPOSE HEAT TREATMENT FURNACE

Brand : AICHELİN
Type : Natural Gas Heat Treatment Furnace(VKGS-4/1 160 KW)
Max. Temperature : 1150 °C
Charge Ewest : 740x700x1400 mm
Charging Capacity : 1000 Kg
Number of Waits : 8 (19,52 kw) Indoor Flame KROMSCHRODER
Power : 160 KW
Piece : 1
