Our Machines

Portable Hardness Tester(Kalem Tipi)

Model/Brand : 2017/MITECH
Measurement : HRC, HRB, HRA, HV, HLD, HB, HS
Hassasiyet : ± 0,5 %
Workpiece Min. Ağ. : 0,1 kg
Workpiece Min. Kal. : 5 mm
Workpiece Min. Der. : 0,8 mm
Measurement Angle : +90, +45, 0, -45, -90 Verification of Hardness Scan Report

Portable Hardness Tester

Model/Brand : 2017/MITECH
Measurement : HRC, HRB, HRA, HV, HLD, HB, HS
Hassasiyet : ± 0,5 %
Workpiece Min. Ağ. : 0,1 kg
Workpiece Min. Kal. : 5 mm
Workpiece Min. Der. : 0,8 mm
Measurement Angle : +90, +45, 0, -45, -90 Verification of Hardness Scan Report

Double Disc Polishing Machine

Model/Brand : 2017/MESPRE
Polishing Wheel Diameter : Ø200 mm
Speed : 450 rpm
Electric motor : 0,2kW, 220 V, 50 Hz

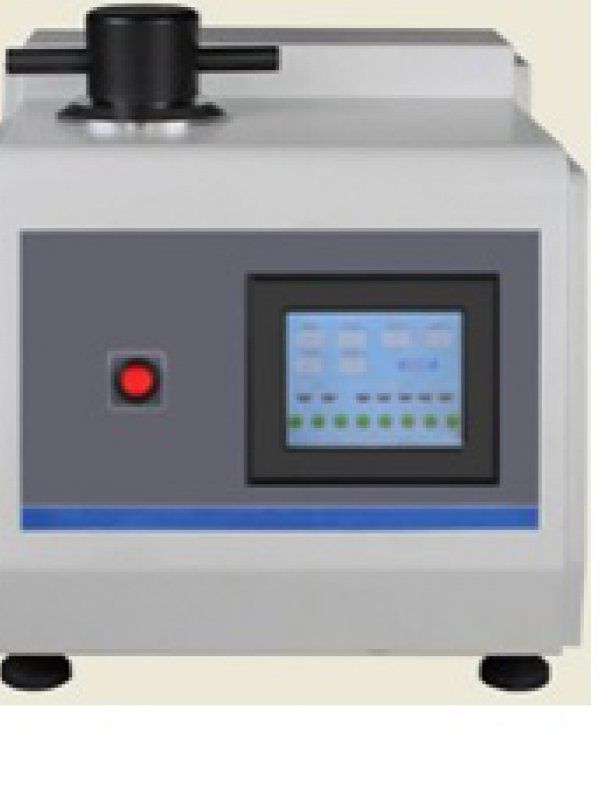

Automatic-Water Cooled and Automatic Compressed Baking Device

Model/Brand : 2017/LARYEE
Temperature Range : 0-200 °C
Diameter : Ø30 mm
Heater Properties : 600 W, 220 V, 50 Hz

Sample Cutting Device

Model/Brand : 2017/MESPRE
Max. Sample Cutting Diameter : 80 mm
Rotation Speed : 2800 rpm

Trinocular Metallurgical Analysis Microscope

Model/Brand : 2017/MITECH
Resolution : 0,017 µm
Lens : Plan Akromatik PL10X, PL20X, PL40X, PL100X
Upgrades : 740x700x1400 mm

Analog Manual Rockwell Hardness Tester

Model/Brand : 2017/MITECH
Measurement : HRA, HRB, HRC
Resolution : 0,5 Rockwell
Front Load : 10 kgf
Total Load : 60, 100, 150 kgf
Application of Load : Manuel
Max Horizontal Blank : 165 mm
Standart : EN-ISO 6508' appropriate

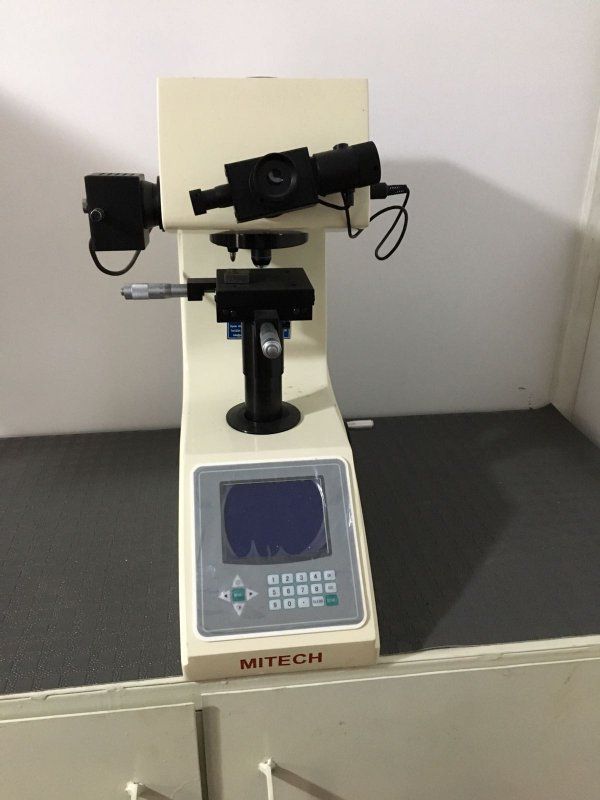

Digital Micro Vickers Hardness Tester

Model/Brand : 2017/MITECH
Measurement : HMV
Resolution : 0,031 µm
Lens : 10x, 40x
Max. Sample Height : 85 mm
Max. Sample Depth : 95 mm
Total Loads : 10, 25, 50, 100, 200, 300, 500, 1000 gf
Measurement Range : 300x300 µm
Standart : EN-ISO 6507 appropriate

Digital Brinell Hardness Tester

Model/Brand : 2017/MITECH
Measurement : HBS
Total Load : 62.5, 100, 125, 187.5, 250, 500, 750, 1000, 1500, 3000 kgf
Max. Horizontal Blank : 135 mm
Standart : GB/T 231.2, ISO 6506-2, ASTM E10' appropriate

Digital Rockwell Hardness Tester

Model/Brand : 2017/MITECH
Measurement : HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH
Resolution : 0,1 Rockwell
Front Load : 10 kgf
Total Load : 60, 100, 150 kgf
Application of Load : Automatic
Max Horizontal Blank : 165 mm
Standart : EN-ISO6508 - ISO 6598.2 ve ASTM-E18' Preparation of appropriate Image and Graphical Hardness Scan Report
